Implementing Lucas-Kanade Optical Flow algorithm in Python

In this article an implementation of the Lucas-Kanade optical flow algorithm is going to be described. This problem appeared as an assignment in  a computer vision course from UCSD. The inputs will be sequences of images (subsequent frames from a video) and the algorithm will output an optical flow field (u, v) and trace the motion of the moving objects. The problem description is taken from the assignment itself.


Problem Statement



Single-Scale Optical Flow

  • Let’s implement the single-scale Lucas-Kanade optical flow algorithm. This involves finding the motion (u, v) that minimizes the sum-squared error of the brightness constancy equations for each pixel in a window.  The algorithm will be implemented as a function with the following inputs:

     def optical_flow(I1, I2, window_size, tau) # returns (u, v)

  • Here, u and v are the x and y components of the optical flow, I1 and I2 are two images taken at times t = 1 and t = 2 respectively, and window_size is a 1 × 2 vector storing the width and height of the window used during flow computation.
  • In addition to these inputs, a theshold τ should be added, such that if τ is larger than the smallest eigenvalue of A’A, then the the optical flow at that position should not be computed. Recall that the optical flow is only valid in regions where

has rank 2, which is what the threshold is checking. A typical value for τ is 0.01.

  • We should try experimenting with different window sizes and find out the tradeoffs associated with using a small vs. a large window size.
  • The following figure describes the algorithm, which considers a nxn (n>=3) window around each pixel and solves a least-square problem to find the best flow vectors for the pixel.


  • The following code-snippet shows how the algorithm is implemented in python for a gray-level image.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
import numpy as np
from scipy import signal
def optical_flow(I1g, I2g, window_size, tau=1e-2):

    kernel_x = np.array([[-1., 1.], [-1., 1.]])
    kernel_y = np.array([[-1., -1.], [1., 1.]])
    kernel_t = np.array([[1., 1.], [1., 1.]])#*.25
    w = window_size/2 # window_size is odd, all the pixels with offset in between [-w, w] are inside the window
    I1g = I1g / 255. # normalize pixels
    I2g = I2g / 255. # normalize pixels
    # Implement Lucas Kanade
    # for each point, calculate I_x, I_y, I_t
    mode = 'same'
    fx = signal.convolve2d(I1g, kernel_x, boundary='symm', mode=mode)
    fy = signal.convolve2d(I1g, kernel_y, boundary='symm', mode=mode)
    ft = signal.convolve2d(I2g, kernel_t, boundary='symm', mode=mode) +
         signal.convolve2d(I1g, -kernel_t, boundary='symm', mode=mode)
    u = np.zeros(I1g.shape)
    v = np.zeros(I1g.shape)
    # within window window_size * window_size
    for i in range(w, I1g.shape[0]-w):
        for j in range(w, I1g.shape[1]-w):
            Ix = fx[i-w:i+w+1, j-w:j+w+1].flatten()
            Iy = fy[i-w:i+w+1, j-w:j+w+1].flatten()
            It = ft[i-w:i+w+1, j-w:j+w+1].flatten()
            #b = ... # get b here
            #A = ... # get A here
            # if threshold τ is larger than the smallest eigenvalue of A'A:
            nu = ... # get velocity here
            u[i,j]=nu[0]
            v[i,j]=nu[1]

    return (u,v)


Some Results


  • The following figures and animations show the results of the algorithm on a few image sequences. Some of these input image sequences / videos are from the course and some are collected from the internet.
  • As can be seen, the algorithm performs best if the motion of the moving object(s) in between consecutive frames is slow. To the contrary, if the motion is large, the algorithm fails and we should implement / use multiple-scale version Lucas-Kanade with image pyramids.
  • Finally,  with small window size,  the algorithm captures subtle motions but not large motions. With large size it happens the other way.


Input Sequences

sphere

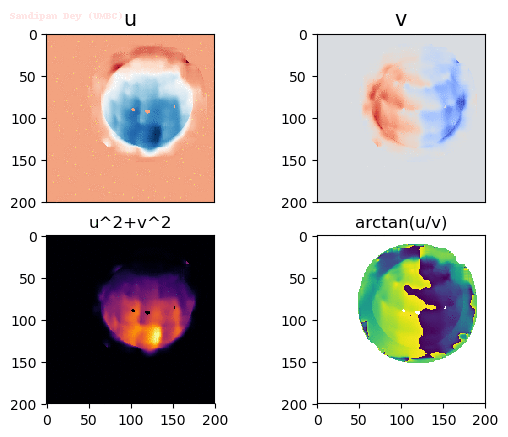

shpere_cmap_15

Output Optical Flow with different window sizes

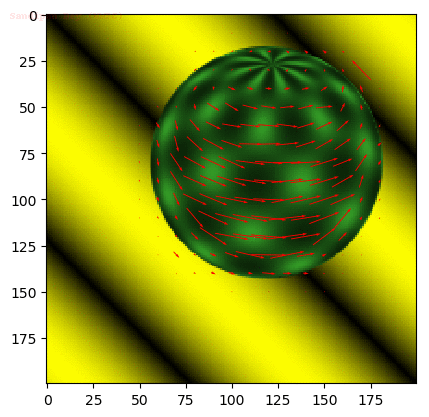

window size = 15

shpere_opt_15

window size = 21

shpere_opt_21



Input Sequences
rubic

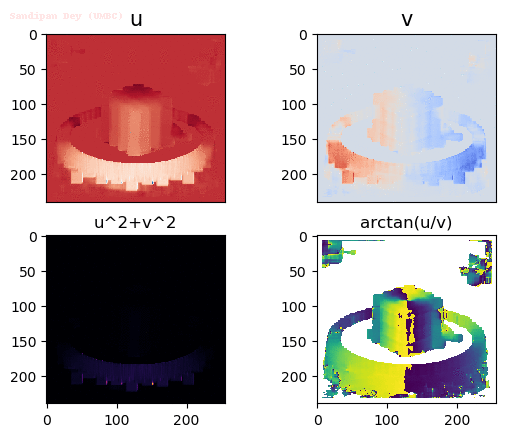

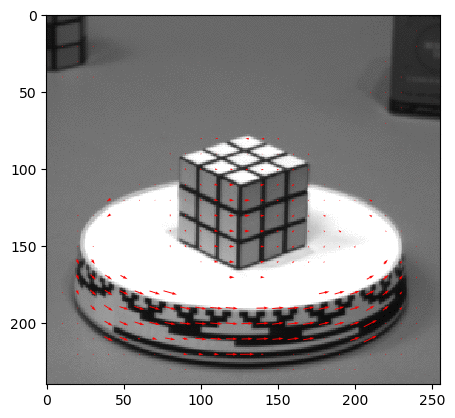

Output Optical Flow
rubic_opt

rubic_cmap



Input Sequences (hamburg taxi)
taxi

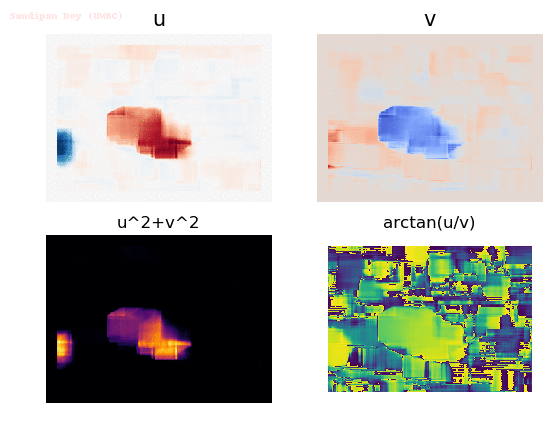

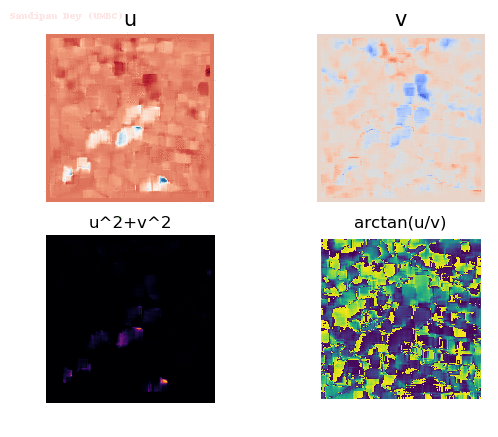

taxi_cmap

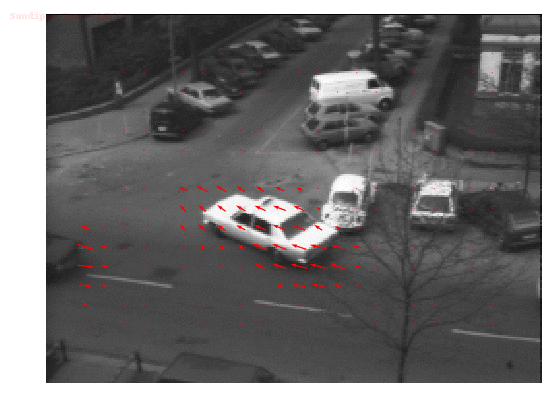

Output Optical Flow
taxi_opt


Input Sequences
box

box_cmap

Output Optical Flow
box_opt

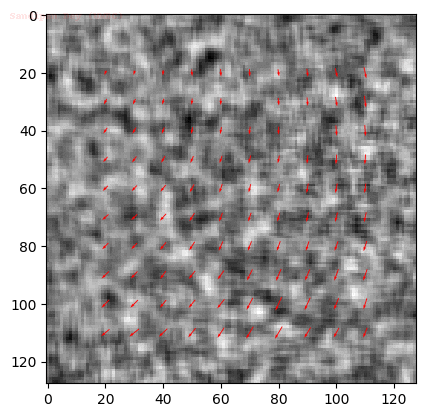

Input Sequences
seq

seq_cmap

Output Optical Flowseq_opt


Input Sequences    fount3.gif

fount_cmap

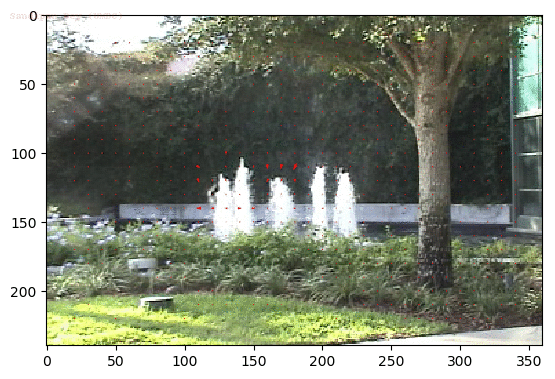

Output Optical Flowfount_opt


Input Sequences

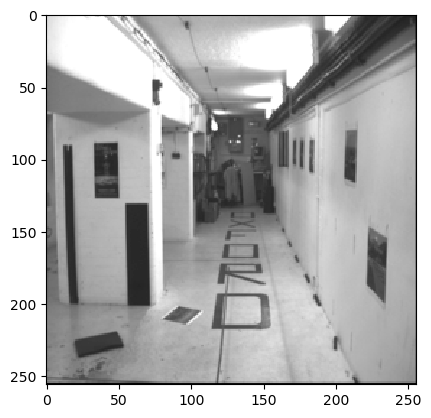

corridor

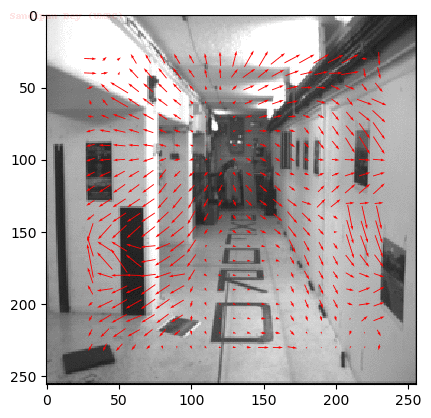

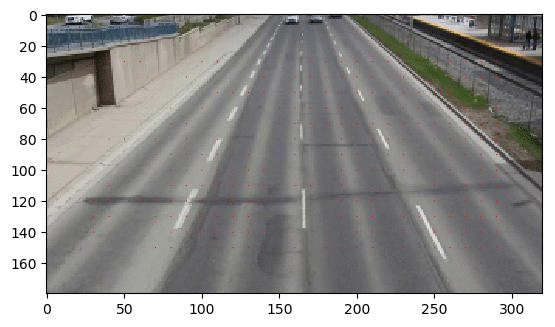

Output Optical Flow
corridor_optc

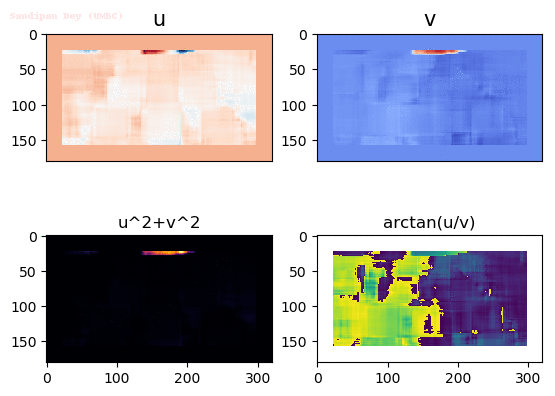

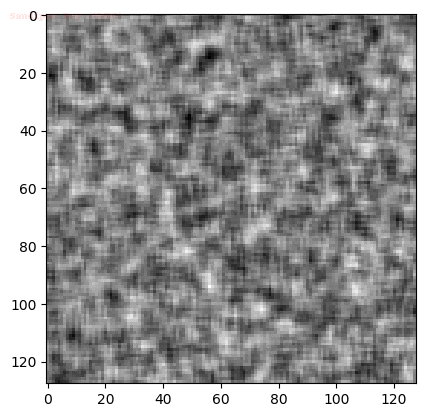

Input Sequencessynth

synth'_cmap
Output Optical Flowsynth_opt

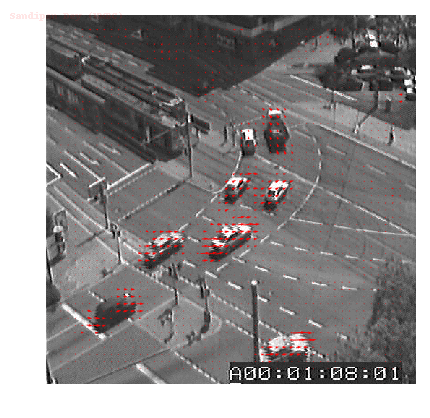

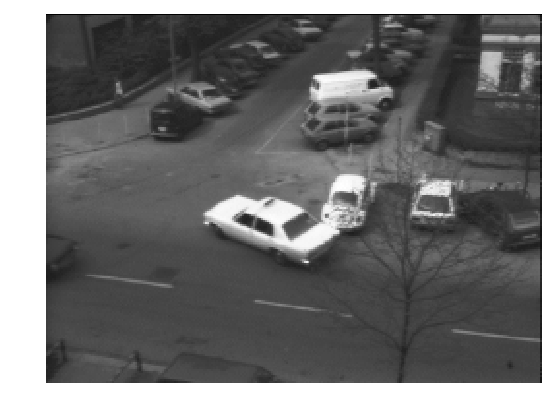

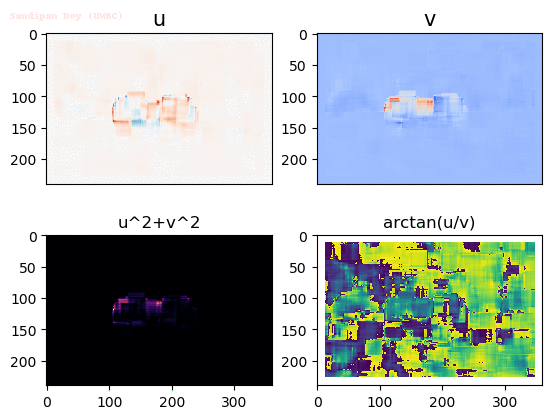

Input Sequencescars1
Output Optical Flowcars1_optcars1_cmap


Input Sequencescars2

Output Optical Flowcars2_opt

Output Optical Flowcars2_opt2cars2_cmap

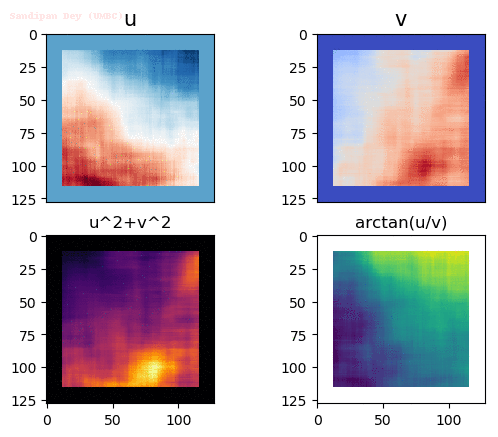

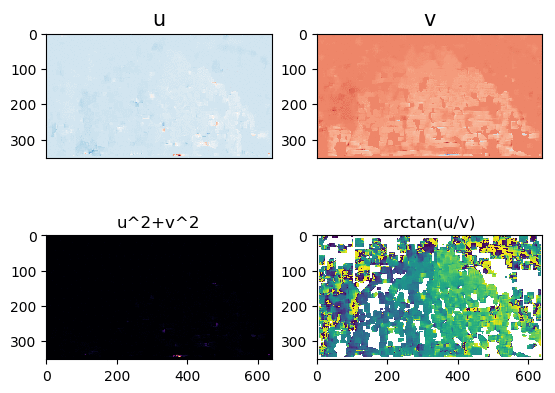

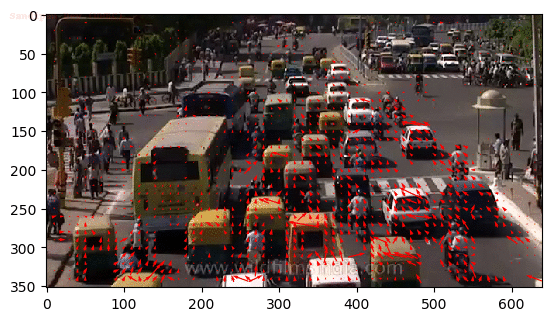

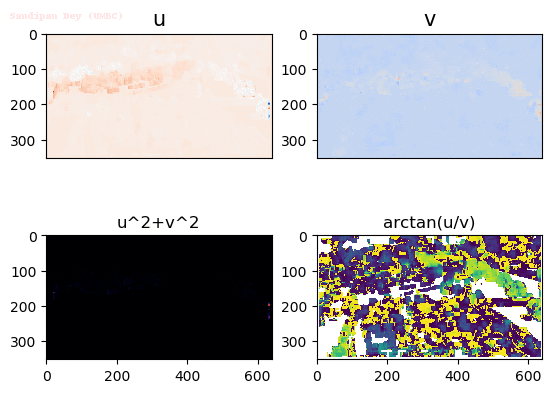

Input Sequences


cars3_cmap

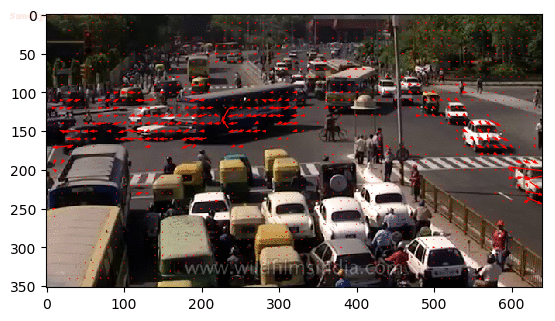

Output Optical Flow with window size 45

Output Optical Flow with window size 10

cars3_opt2_10
Output Optical Flow with window size 25
cars3_opt2_25
Output Optical Flow with window size 45cars3_opt2_45
